"Deep Bass, Total Control"

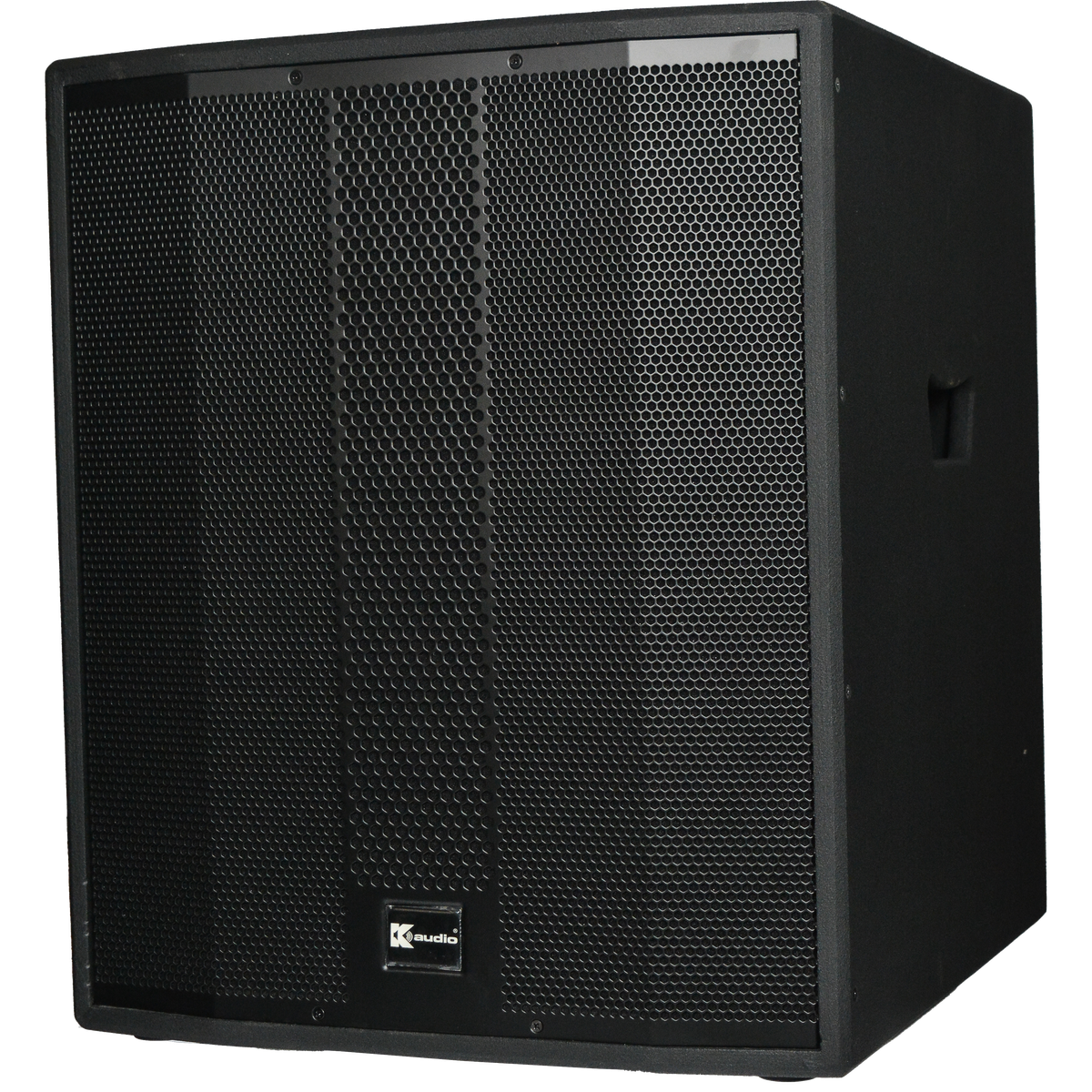

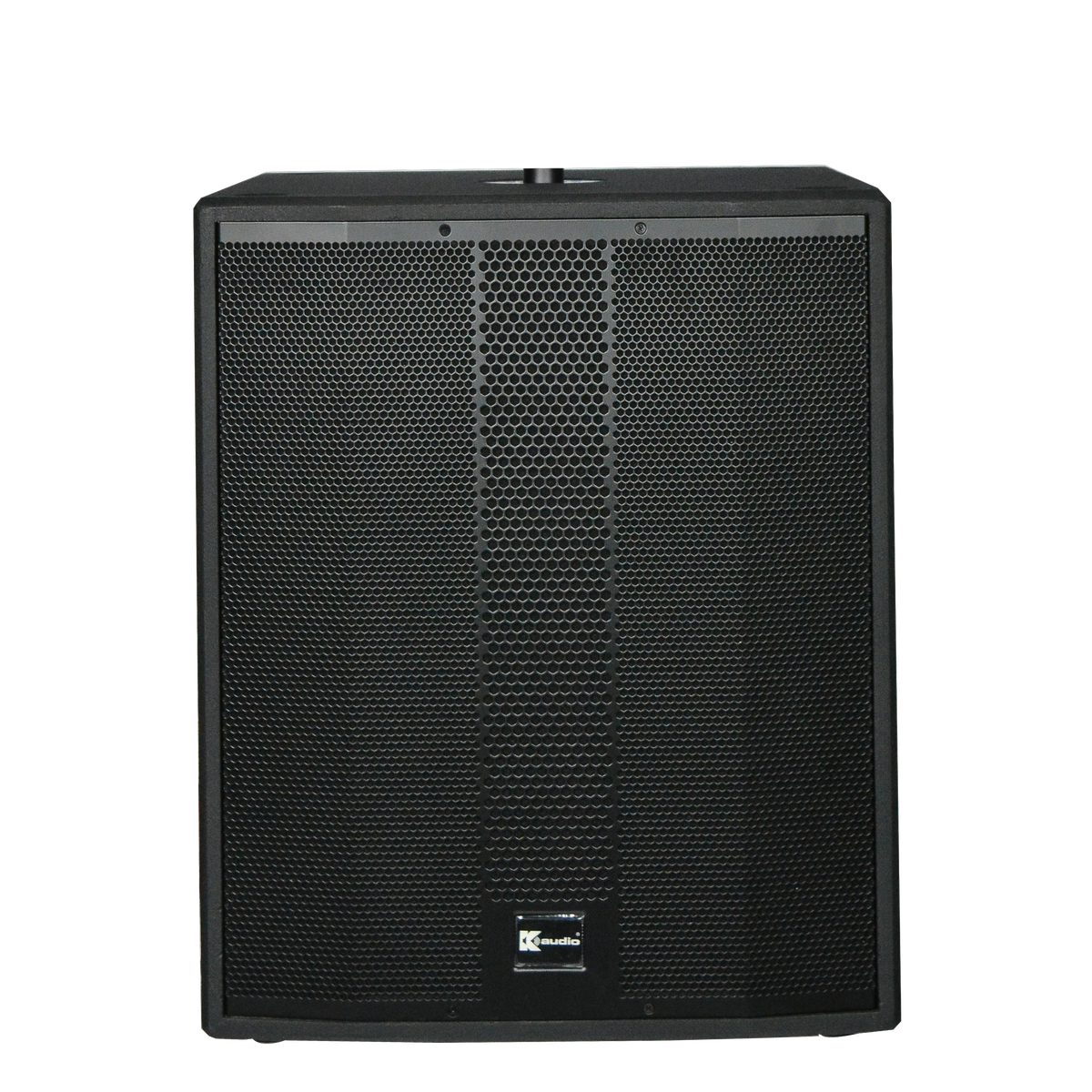

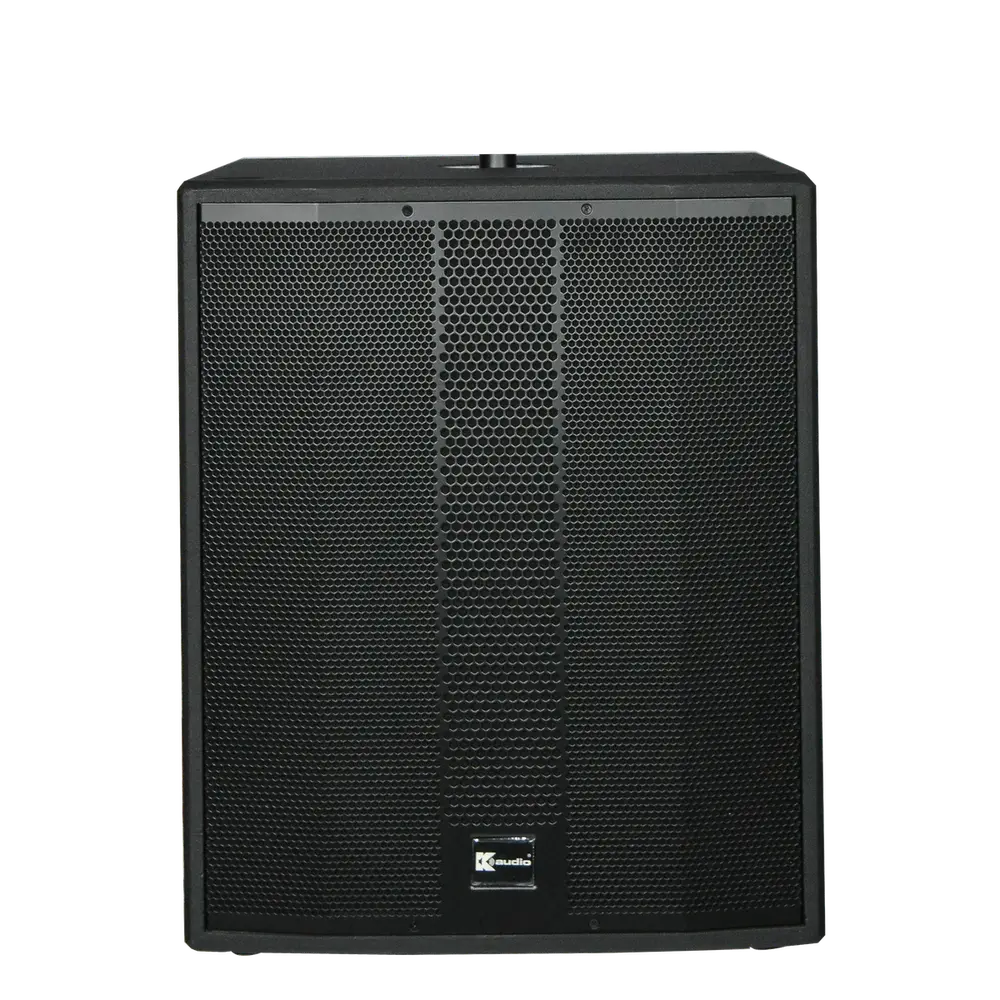

18-inch active subwoofer with integrated Class-D amplifier. Delivers deep bass extension for large venues, outdoor events, and cinema installations.
Technical Data
| Driver | 18" Long-Excursion Woofer |
| Amplifier | Class-D, 1000W RMS |
| Frequency Response | 35Hz – 150Hz (±3dB) |
| Max SPL | 131dB Peak |
| Crossover | Adjustable 60–150Hz |

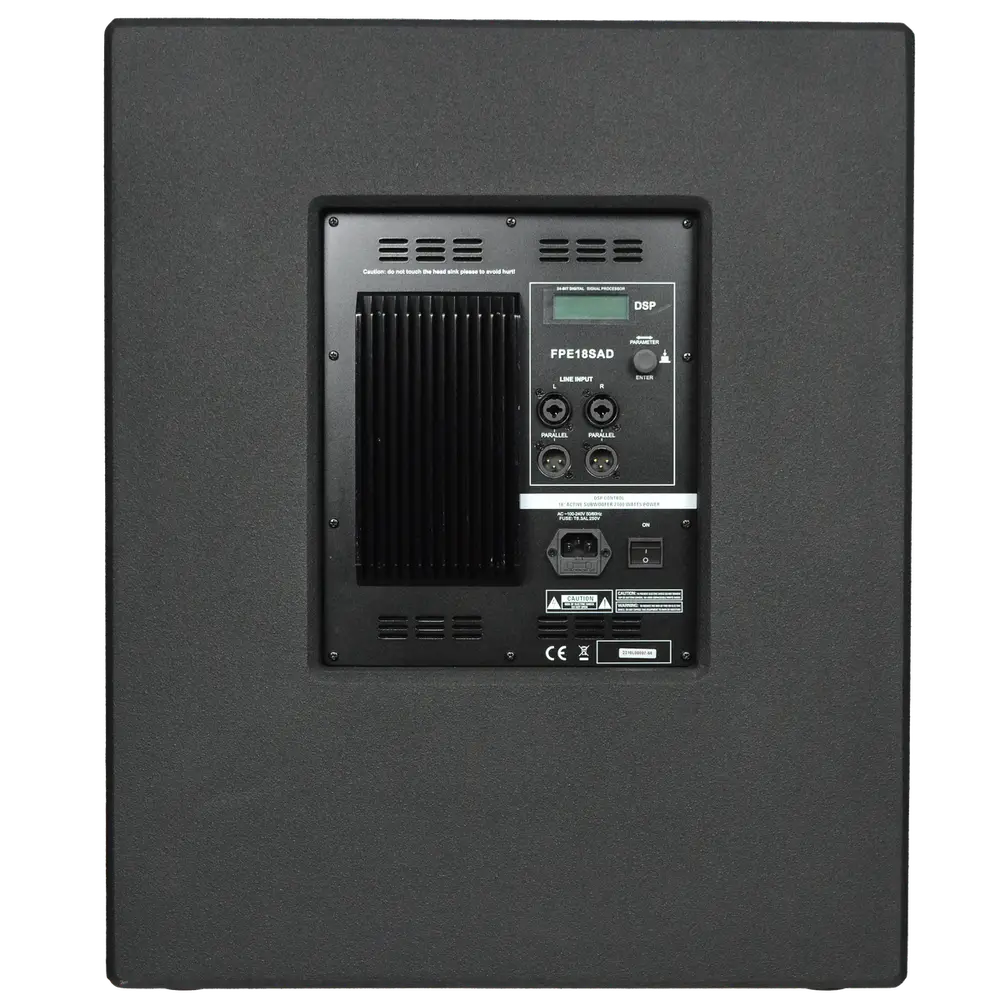

| Input | XLR Balanced, Link Output |
| Power | 100–240V Auto-switching |
| Cabinet | Birch Plywood, Polyurea Coat |
| Dimensions | 680 × 510 × 560 mm |
| Weight | 42 kg |
Engineering
An 18-inch long-excursion woofer with a progressive-roll surround and reinforced voice-coil assembly moves massive air volume at 35Hz — the physical foundation of every serious system.
Integrated high-efficiency Class-D amplification delivers 1000W RMS with minimal thermal generation, eliminating the need for external amplifier racks and simplifying system deployment.

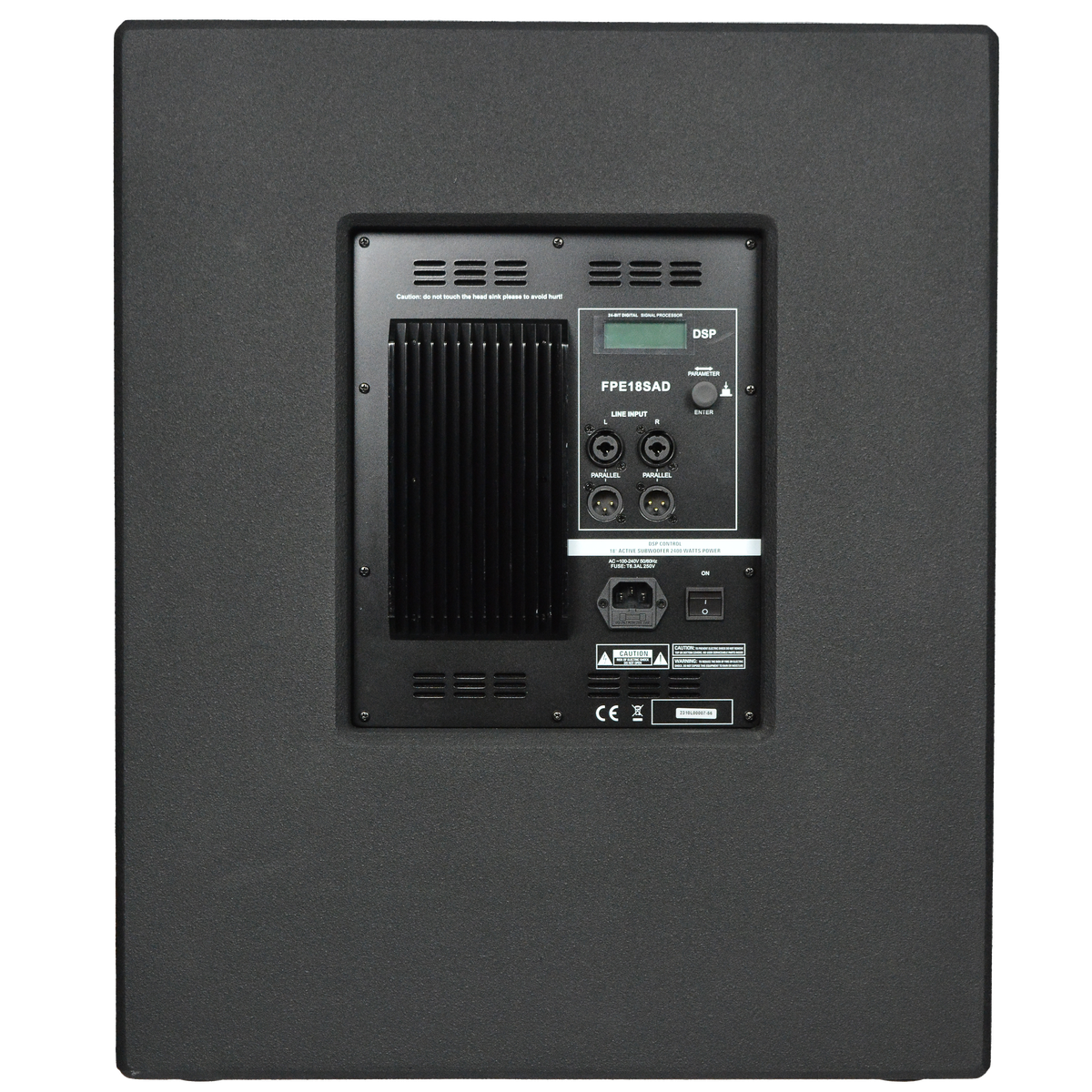

Front-panel crossover sweep from 60Hz to 150Hz lets engineers seamlessly integrate the FPE18SAD with any top-box configuration — from 10-inch fills to full 15-inch arrays.
Precision DSP-driven peak limiting and thermal protection circuits prevent driver and amplifier damage under continuous high-power operation, extending service life significantly.
0°/180° phase switch and continuously variable input gain allow precise time and level alignment with satellite speakers, eliminating comb-filtering artefacts in any room geometry.
Automatic signal-sensing standby conserves energy between sets. A 100–240V auto-switching power supply makes the FPE18SAD tour-ready across every market without voltage converters.
Also Consider

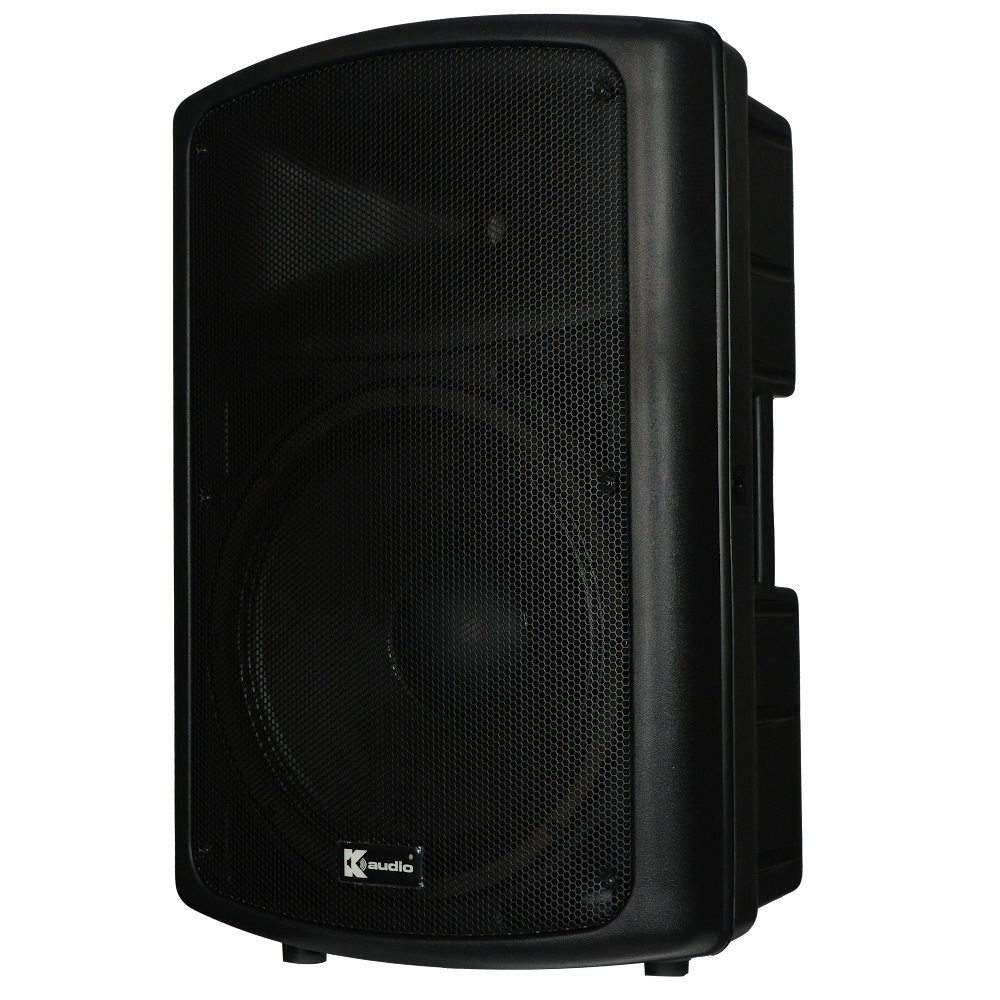

Fifteen-inch two-way passive speaker — pairs with the FPE18SAD for a high-impact full-range system. Signature Collection.
View Product →

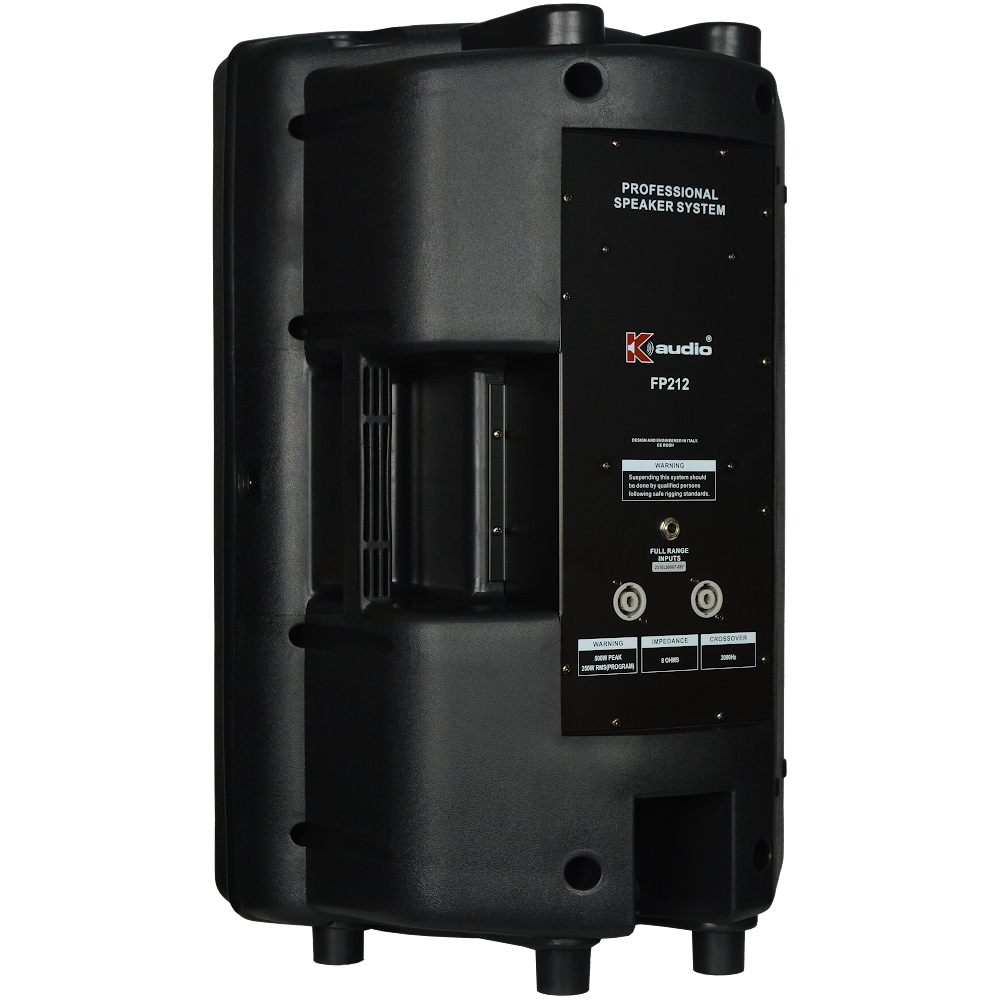

Twelve-inch two-way passive speaker. A natural sub-sat pairing with the FPE18SAD for mid-size touring and installed sound.
View Product →

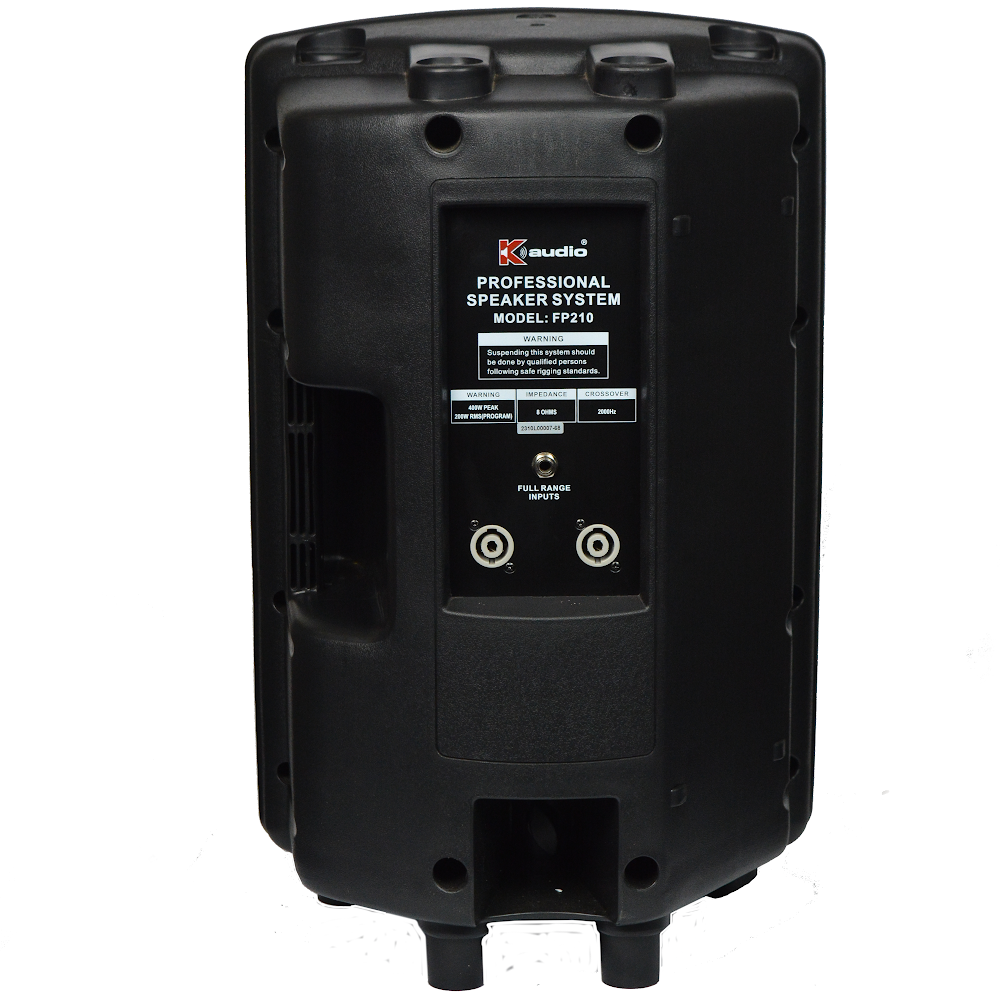

Portable ten-inch two-way speaker for stage fills and monitors. Combine with the FPE18SAD for complete mobile rig coverage.
